Estimated Lead Time : 7 – 10 working days.
Manufacturer : Allen-Bradley

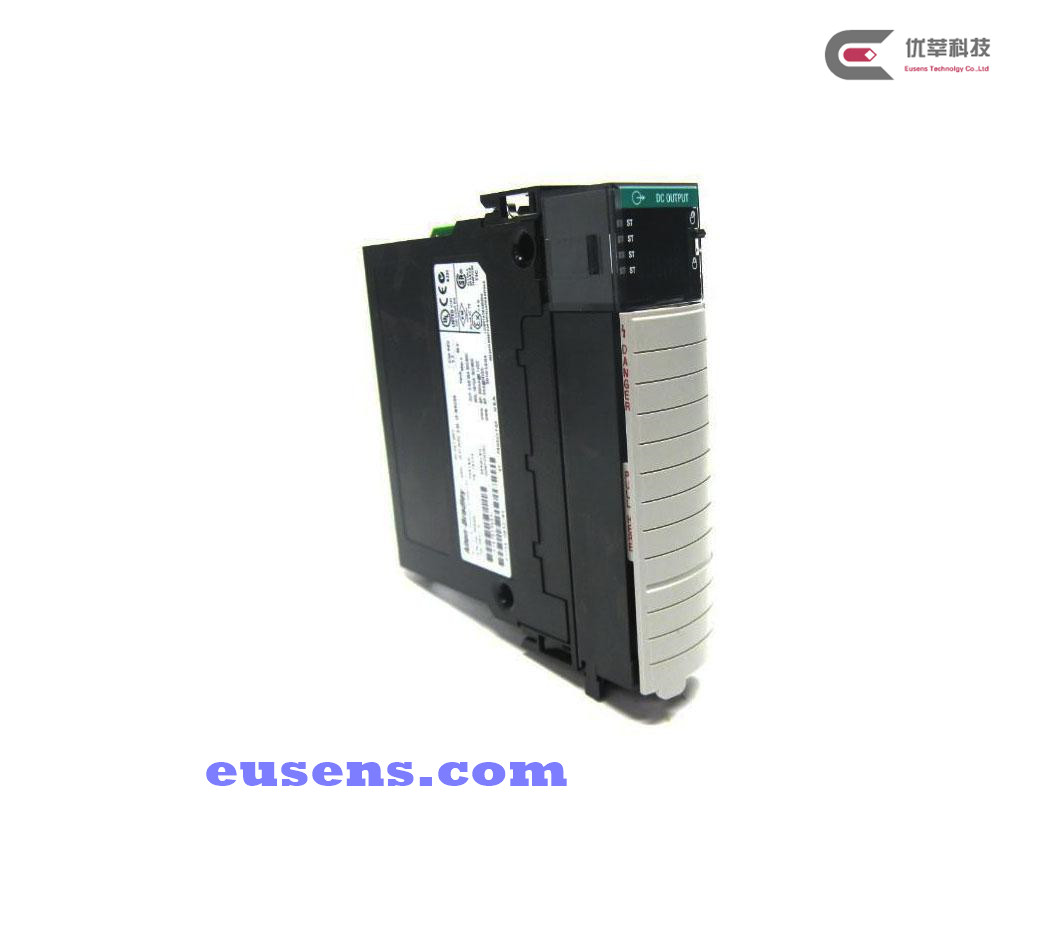

Product No. : 1756-OB32
Product type : Output Module
Number of outputs : 32 (16 points/common)
Backplane current : 300mA @ 5.1V dc & 2mA @ 24V dc
Maximum power dissipation : 4.8W @ 60o C
Thermal dissipation : 16.37 BTU/hr
Output voltage range : 10-31.2V dc @ 50o C (linear derating), 10-28V dc @ 60o C
Surge current per point : 1A for 10ms each, repeatable every 2s @ 60掳C
Minimum load current : 3mA per point
Maximum on-state voltage drop : 200mV dc @ 0.5A
Maximum off-state leakage current : 0.5mA per point
Scheduled outputs : Synchronization within 16.7s maximum, reference to the coordinated system time
Reverse polarity protection : None – If module is wired incorrectly, outputs may be damaged
Shipping Weight : 3 Kg
