Estimated Lead Time : 7-10 working days.

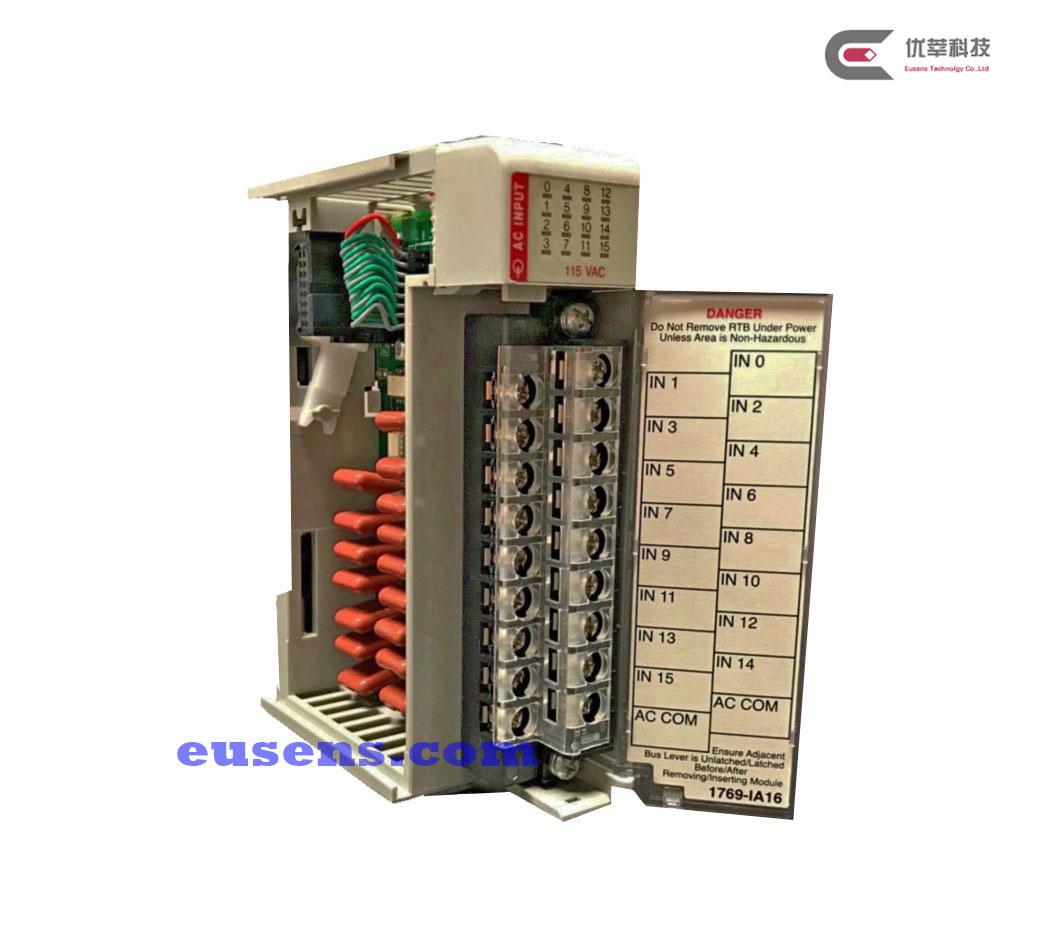

Manufacturer : Allen-Bradley
Off-state voltage, max : 20V AC
Off-state current, max : 2.5 mA
On-state voltage, min : 79V AC
On-state current, min : 5 mA @ 74V AC
On-state current, max : 12 mA @ 120V AC
Inrush current, max : 250 mA
Isolation voltage : Verified by one of the following dielectric tests: 1517V AC for 1 s or 2145V DC for 1 s, input point to bus 132V AC working voltage (IEC Class 2 reinforced insulation)
Dimensions (HxWxD) : 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
Slot width : 1
Module location : DIN rail or panel mount
Power supply : 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power supply distance rating : 8 modules
Wire size : (22??4 AWG) solid (22??6 AWG) stranded
Wire type : Cu-90 掳C (194 掳F)
Replacement terminal block : 1769-RTBN18 (1 per kit)
Replacement door label : 1769-RL1 (2 per kit)
Replacement door : 1769-RD (2 per kit)
Shipping Weight : 2.5 Kg
