Estimated Lead Time : 1 – 2 weeks
Manufacturer : Allen-Bradley

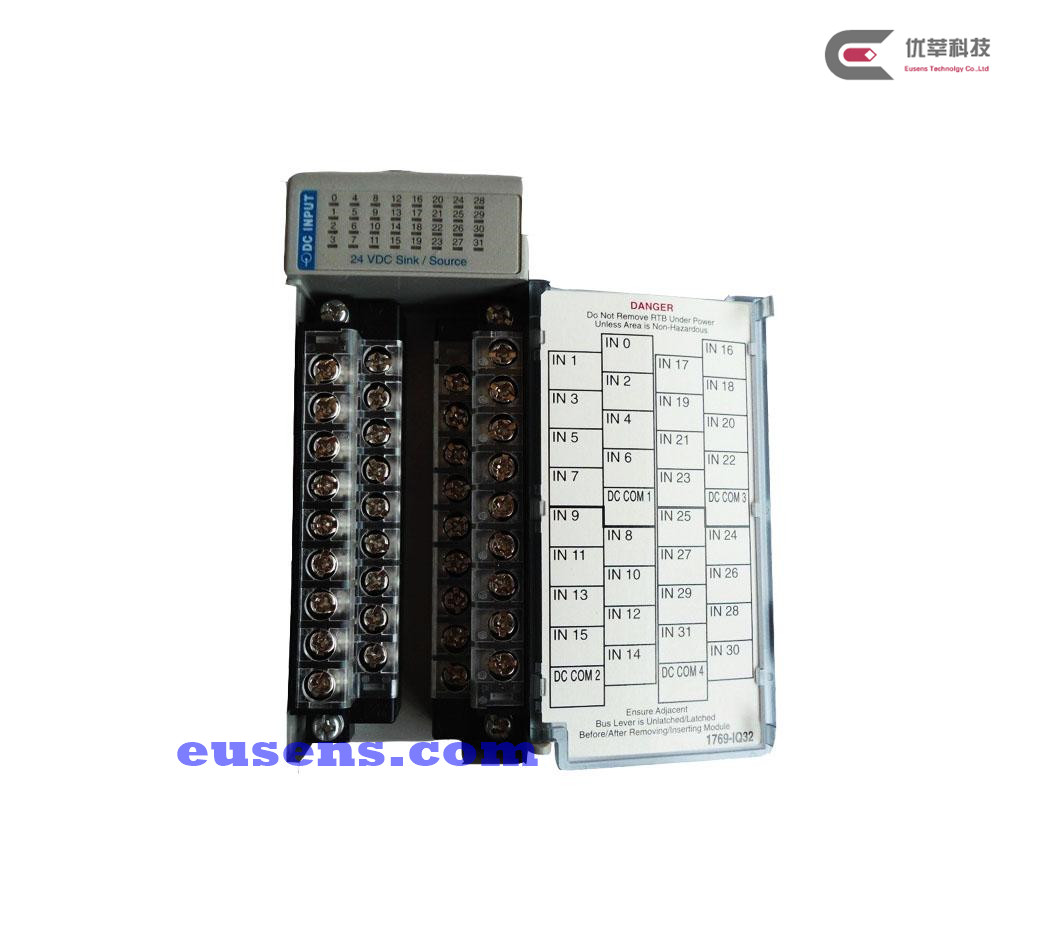

Product No. : 1769-IQ32Product type : Compact DC I/O Module
Inputs : 32 (8 points/group)
Voltage category : 24V DC sink/source
Operating voltage range : 10芒鈧??0V DC @ 30 脗掳C (86 脗掳F) 10芒鈧??6.4V DC @ 60 脗掳C (140 脗掳F)
Input delay, on/off : 8 ms
Current draw @ 5.1V : 170 mA
Heat dissipation, max : 4.6 W
Inrush current, max : 250 mA
Isolation voltage : Verified by one of the following dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, input point to bus and group to group 75V DC working voltage (IEC Class 2 reinforced insulation)
Nonlinearity : 脗卤0.03%
Repeatability : 脗卤0.03%
Isolation voltage : 500V AC or 710V DC for 1 minute (qualification test), group to bus 30V AC/30V DC working voltage (IEC Class 2 reinforced insulation)
Module location : DIN rail or panel mount
Dimensions HxWxD cm : 11.8×5.25x 8.7
Power supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power supply distance rating : 8 modules
Slot width : 1.5
Shipping weight : 3 Kg
