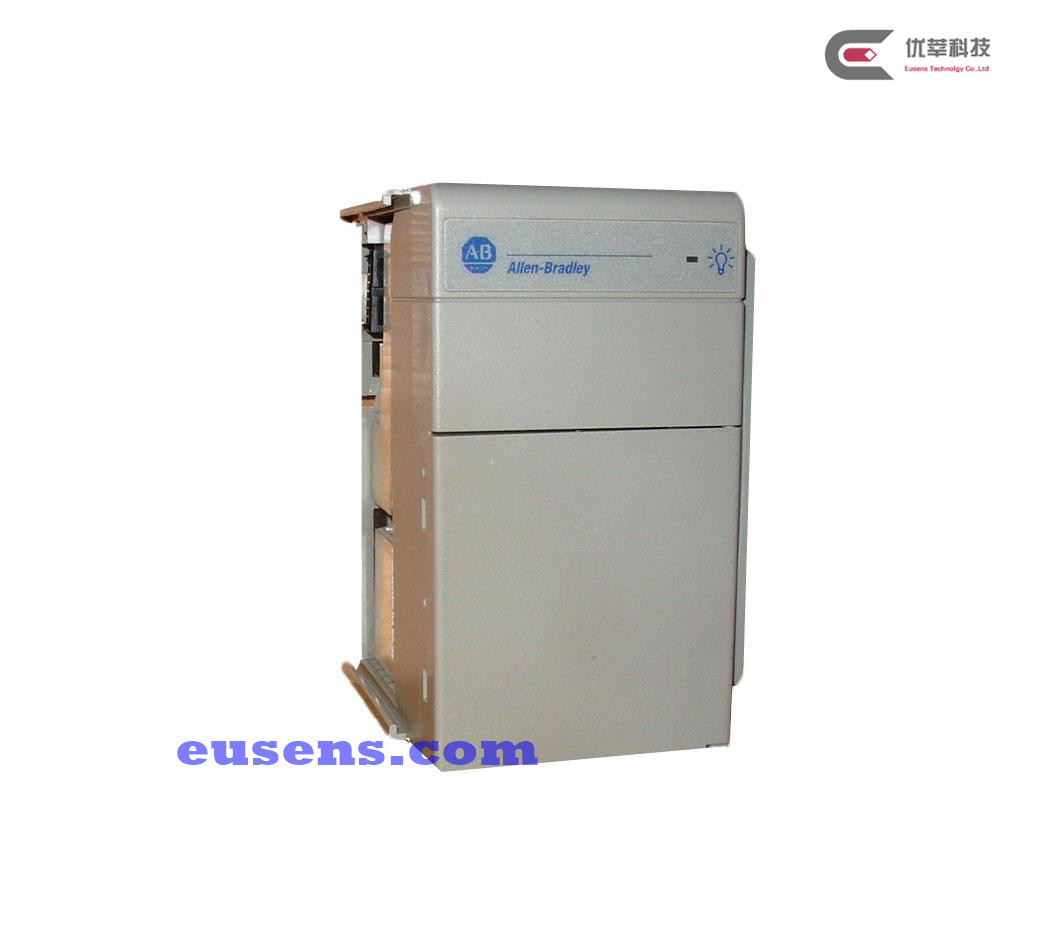

1769-PA4 — Allen-Bradley — Expansion Power Supply

$234.00

  • Estimated Lead Time : 7-10 working days.
  • Manufacturer : Allen-Bradley
  • Product No : 1769-PA4
  • Product type : Expansion Power Supply
  • Input voltage range : 85??65V AC or 170…265V AC, switch selectable
  • Input voltage, nom : 120V/220V AC
  • Power consumption : 200 VA @ 120V AC, 240 VA @ 240V AC
  • Power dissipation : 18 W @ 60掳 C (140掳 F)
  • Current capacity @ 5V : 4.0 A
  • Current capacity @ 24V : 2.0 A
  • Inrush current, max : 25 A @ 132V AC
  • Isolation voltage : 265V (continuous), reinforced insulation type (IEC Class 1 grounding required). Routine tested at 2596V DC for 1 s, AC power input to system
  • Fuse type : Wickmann 19195-3.15A, Littelfuse 02183.15MXP
  • Module location : DIN rail or panel mount
  • Power supply distance rating: 8, 8 I/O modules can be connected on either side of the power supply for a maximum of 16 modules
  • Wire category : 1 – on power ports
  • Wire size : 14 AWG (2.5 mm2 ) solid copper wire rated at 90 掳C (194 掳F) or greater, 1.2 mm (3/64 in.) insulation max
  • North American temperature code : T3C
  • Dimensions (HxWxD), approx : 11.8 x 7.0 x 8.7 cm
  • Weight : 1kg
  • Shipping Weight : 2 Kg
