Estimated Lead Time : 8 – 10 weeks.
Manufacturer : Allen-Bradley

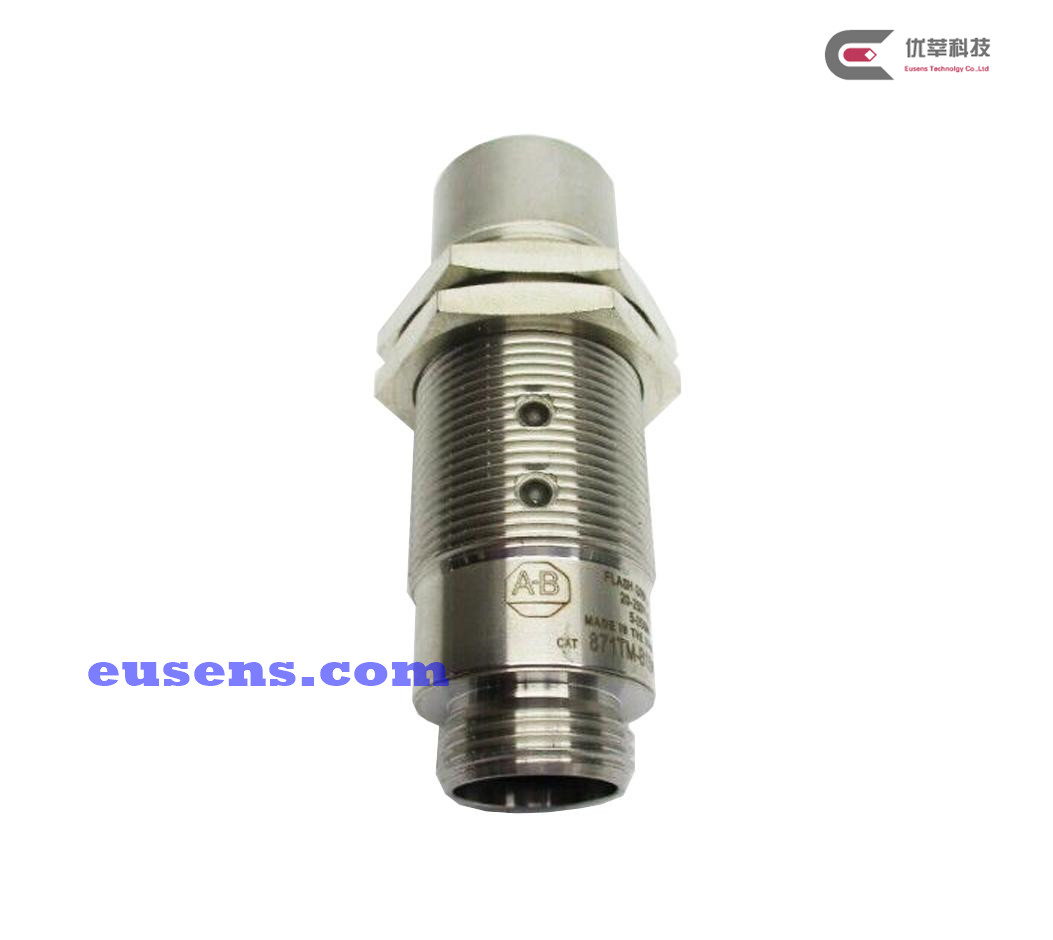

Product No. : 871TM-B15N30-N3
Product type : 871TM 2-Wire AC/DC Inductive Proximity Sensors
Load Current : 5??50 mA
Inrush Current (1 cycle) : =4 A
Leakage Current : =1.9 mA @ 120V AC
Operating Voltage : 20??50V AC/DC
Voltage Drop : =10V @ 5??50 mA
Repeatability : =10% at constant temperature
Hysteresis : 7% typical
Certifications : UL Listed, CSA Certified and CE Marked for all applicable directives
Enclosure Type Rating : NEMA 1, 2, 3, 3R, 4, 4X, 6, 6P, 12, 13 IP67 (IEC 529) all models; 1200 psi (8270 kPa) washdown; stainless steel face and barrel; ToughLink??and micro connector versions are also rated IP69K (IEC 529)
LED’s : Red: Output energized, Green: Power, Short circuit: Red and green flashing
Operating Temperature [C (F)] : –25??70掳 (–13??158掳)
Indicator Status Indicators: Red: Output Energized. Green: Power/Short Circuit (flashing)??8 mm models only.
Operating Temperature : -25??70 掳C (-13??158 掳F)
Shock : 30 g,11 ms
Vibration : 55 Hz, 1 mm amplitude, 3 planes
Shipping weight : 2 Kg
