Manufacturer: Mitsubishi Electric

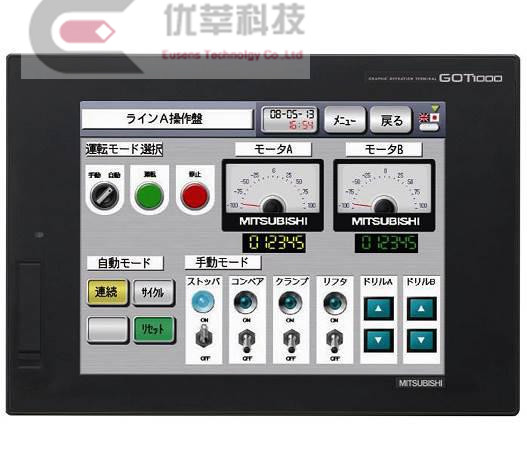

Product No : GT1685M-STBA

Product type : GOT1000 series GT16

Classification: Large:8 to 15-inch

ProductNo. : GT1685M-STBA

Modelname : GT16

Applicablestandards : UL /cUL, CE (EMC), CE (LVD), KC, ABS, BV, DNV, LR, NK, RINA, GL

Display type : TFTcolor LCD (high brightness, wide viewing angle)

Screensize : 12.1-inch

resolution: SVGA:800 脳 600 [dot]

Displaysize : 246 (W)脳 184.5 (H) [mm]

Displaynumber of characters : 16 dotstandard font at the time: 50 characters 脳 37 lines (full-size)

12-dot standard font at the time: 66 characters 脳 50 rows (em)

Displaycolor : 65536colors

Viewangle : Each ofthe left and right 80 degrees, above 60 degrees, down 80 degrees

Contrastadjustment : –

LCDsimple brightness : 470 [Cd/ M 2 ]

Brightnessadjustment : 8levels of adjustment

lifespan: About52,000 hours (ambient temperature 25 掳C)

It canbe registered maximum number of screens : 4096screen

Backlight function: Cold-cathodetube (replaceable) backlight burnout detection function, backlight OFF /screen save time setting Allowed

lifespan: About50,000 hours or more (time to use the ambient temperature is 50% of thedisplay brightness at 25 掳C)

color : White

Touchpanel method: Analogresistive film type

Numberof touch keys : –

Keysize : Minimum2 脳 2 [dot] (per key)

Simultaneouspress points : Notpress simultaneous (one point only can touch)

lifespan: Amillion times or more (Operation 0.98 [N] or less)

Humansensor Detectiondistance : 1 [m]

Rangeof detection : Respectivelyup, down, left and right 70 degrees

Detectiondelay time : 0-4[sec]

memory

Flashmemory

capacity: Built-inflash memory 15M bytes

Life(write the number of times) : 100,000times

Use : Projectdata for storage, for OS storage

SRAM

capacity: –

Use : –

EEPROM

capacity: –

Use : –

Battery type : GT15-BAT-typelithium battery

Backedup : Clockdata, maintenance time notification for data, system log data

lifespan: About 5years (Ambient Temperature: 25 掳C)

Built-ininterface bus : –

RS-422/485(combined) : RS-422/4851ch, transmission speed: 115200/57600/38400/19200/9600 / 4800bps, connectorshape: 14-pin (female), applications: connection equipment for communication

RS-422/232(combined) : –

RS-422: –

RS-232: RS-2321ch, transmission speed: 115200/57600/38400/19200/9600 / 4800bps, Connectorshape: D-sub 9-pin (male), applications: connection equipment forcommunication, for PC connection (project data upload / download, OSinstallation , FA transparent function)

Ethernet: Datatransfer method: 100BASE-TX, 10BASE-T 1ch, connector shape: RJ-45 (modularjack), use: connection equipment for communication, for the gateway function,for PC connection (project data upload / download, OS installation, MESinterface function)

RGB : –

Printer: –

USB(devices) : USB(Full Speed ??12Mbps) device 1ch, connector shape: TYPE Mini-B, use: for PCconnection (project data upload / download, OS installation, FA transparentfunction)

USB(host) : USB(Full Speed ??12Mbps) host 1ch, connector shape: TYPE-A, applications: datatransfer, for storage

CF card: CompactFlash slot 1ch, connector shape: TYPEI, applications: data transfer, datastorage, GOT for start-up

PC Cardslot : –

Optionalfunction board : MESinterface function for 1ch

Memoryboard : –

Expansionunit : Communicationunit / option unit mounting 2ch

switch Switch1 : –

Switch2 : –

Buzzeroutput : Singletimbre (sound length adjustable)

Protectivestructure : Frontsection: IP67F (JEM1030), board internal: IP2X (JEM1030)

Externaldimensions : 316 (W)脳 242 (H) 脳 52 (D) [mm]

Panelcut-out dimensions : 302 (W)脳 228 (H) [mm]

Mass(excluding the mounting bracket) : 2.7[kg]

Ambienttemperature

Display: 0 ~ 50 掳C

Otherthan the display unit : 0 ~ 55 掳C

Storagetemperature : -20 掳C ~ 60 掳C

Ambienttemperature : 10 ~90% RH, non-condensing

Storageambient humidity : 10 ~90% RH, non-condensing

Vibrationresistance: Compliance: Conformto JIS B 3502, IEC 61131-2

Vibrationresistance: Ifthere is intermittent vibration : <5> half amplitude 3.5mm, the number of sweeps X, Y, Z eachdirection 10 times , acceleration 9.8M /S 2 , the numberof sweeps X, Y, Z each direction 10 times

Vibrationresistance: Ifthere is a continuous vibration : <5> half amplitude 1.75Mm, acceleration 4.9M / S 2

Impact: Conformto the B 3502 JIS, IEC 61131-2 (147M / S 2 , XYZ 3 directions threetimes each)

Useatmosphere : Oilysmoke, corrosive gas, there is no flammable gas, it is not terribly dust ofcontinuity, that direct sunlight does not hit (as well as during storage)

Operatingaltitude : 2000mor less

Installationlocation : Controlpanel

Overvoltagecategory : IIbelow

Degreeof contamination : 2 orless

Coolingsystem : Self-cooling

Theinput power supply voltage : AC100 ~240V (+10%, – 15%)

Inputfrequency : 50 /60Hz 卤 5%

Inputmaximum apparent power : 110VA(at maximum load)

Powerconsumption Normaltime : 46W orless

Whenthe backlight turns off : 32W orless

Inrushcurrent : 28A orless (4ms) (at full load)

Allowablemomentary power failure time : Within20ms (or more AC100V)

Noiseimmunity : Noisevoltage 1500Vp-p, noise width 1碌s, due to noise simulator of noise frequency25 ~ 60Hz

Withstandvoltage : Powersupply terminal bulk ? ground between AC1500V 1 minute

Insulationresistance : 10MO ormore at the power supply terminal bulk ? ground between DC500Vinsulation resistance tester

Applicablewire size : ? 2 0.75 [Mm 2 ]

Crimpterminal : M3crimp terminals RAV1.25-3 of the screw, V2-S3.3, V2-N3A, FV2-N3A

Torquewith fit tightening (terminal block terminal screws) : 0.5 ~0.8 [N m]

ground: Class Dgrounding (100O or less), that the connection to the board when the groundcan not

MountingType : Standard
