U2-1018S-PF
U2-1018S-PF

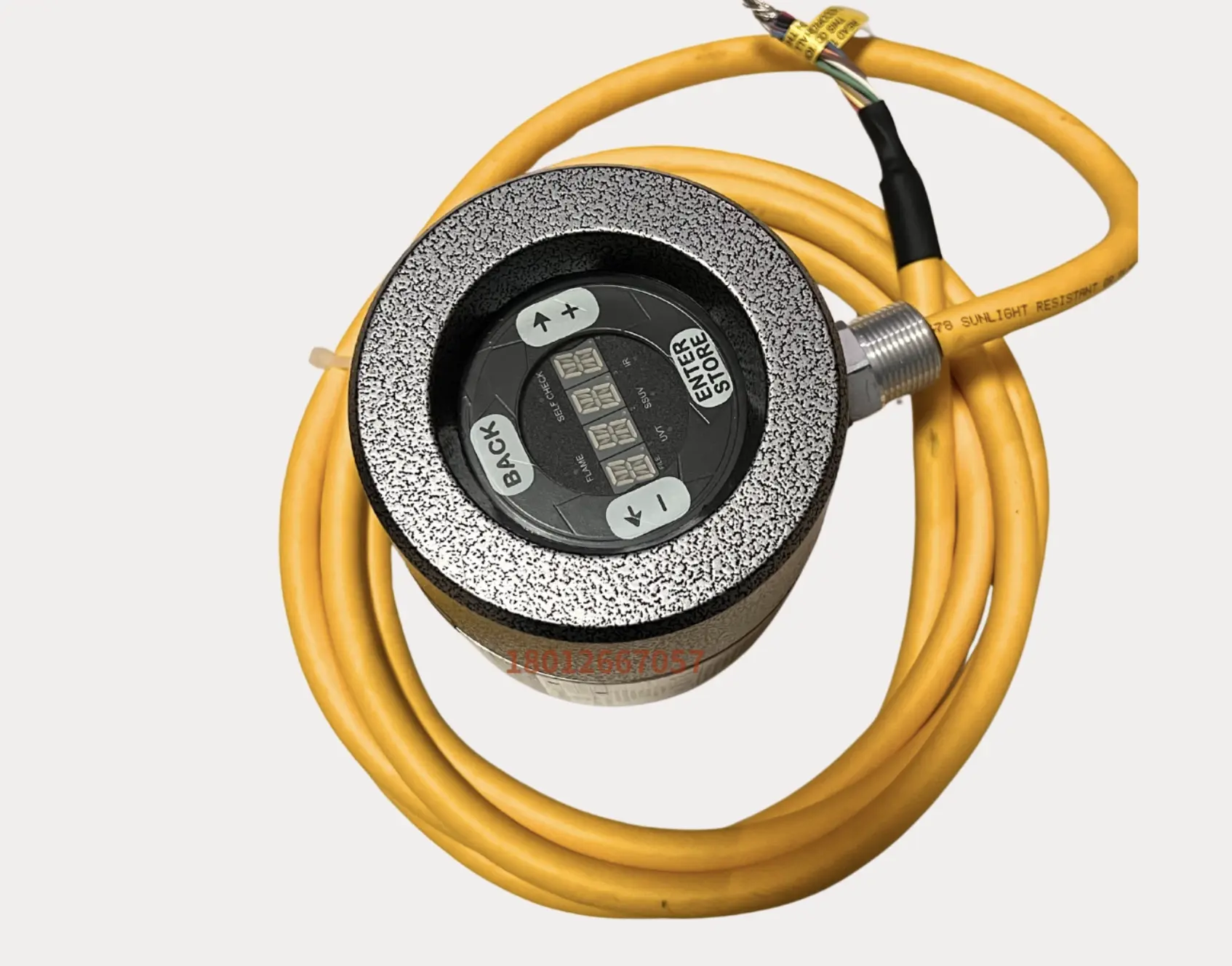

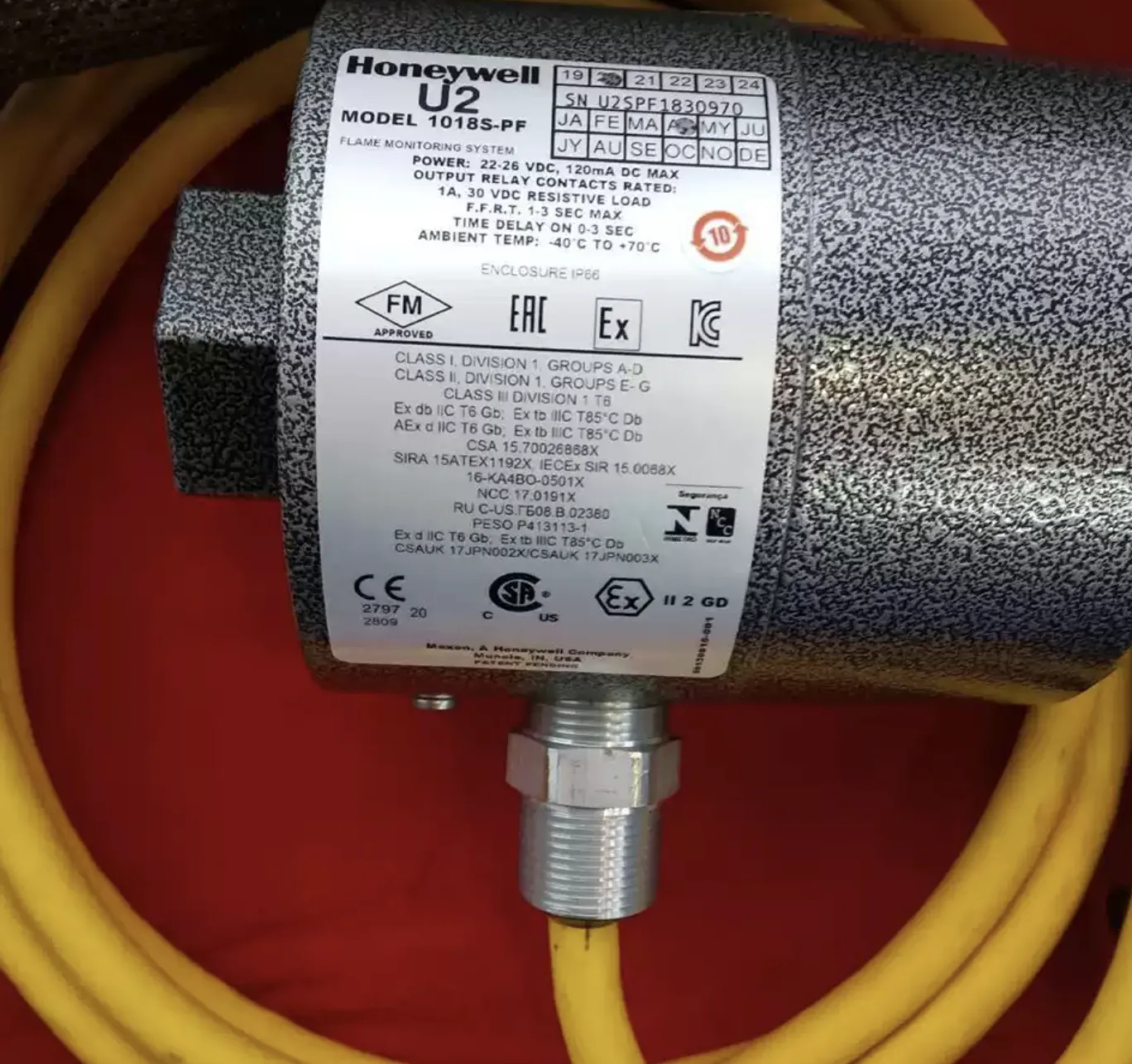

Honeywell U2 flame monitoring system combines sensing and processing in one package.U2-1018S-PF
$5,400.00
Honeywell U2 flame monitoring system combines sensing and processing in one package.U2-1018S-PF
Models and Associated Features.
|
Model |
Quick Connector |
Pipe Fit Connection |
Sensor Type |
Typical Fuels |
||
|
UVTron |
IR |
UVSS |
||||
|
U2-1010S |
X |
|
X |
X |
X |
All Fuels |
|
U2-1010S-PF |
|
X |
X |
X |
X |
All Fuels |
|
U2-1010S-PF-050* |
|
X |
X |
X |
X |
All Fuels |
|
U2-1010S-PF-100 |
|
X |
X |
X |
X |
All Fuels |
|
U2-1012S |
X |
|
|
X |
|
Oil and Coal |
|
U2-1012S-PF |
|
X |
|
X |
|
Oil and Coal |
|
U2-1016S |
X |
|
X |
|
|
Gas and Light Oils |
|
U2-1016S-PF |
|
X |
X |
|
|
Gas and Light Oils |
|
U2-1018S |
X |
|
X |
X |
|
All Fuels |
|
U2-1018S-PF |
|
X |
X |
X |
|
All Fuels |
- The U2-1010S-PF-050 has a 50-ft (15m) pigtail and the U2-1010S-PF-100 has a 100-ft (30m) pigtail.
U2-1010S-PF US$5,400.00
STT17H-BS–0-000-000-000-00 US$280.00
U2 1018S-PF
U2-1016S-PF
U2-1012S-PF
FFW930.1
TC-IAH161
SPECIFICATIONS
Input Power Supply: 22-26 VDC, 120 mA max (approxi- mately 3.5 watts)
Remote Communication: 2 wire RS485 compatible with Modbus RTU protocol.
Flame And Fault Relay Contact Ratings:
1 A, 30 VDC (Resistive).
Maximum load current of 1A must be de-rated at tem- peratures higher than 50C ambient according to 1%/C, or 10mA/C.
